Plan the cable around the revised equipment layout
If your equipment layout is changing and you are reviewing a male-to-female cable, mark the original and proposed connection positions on a sketch. Identify which mating part belongs at each position. Give the proposed cable its own item reference and state DC5521 male-to-female as the requested configuration. Keep the cable inquiry tied to the new layout rather than relying on a description of the previous arrangement.
Ask your engineering team to review whether this end configuration is the one the project requires. Include the mating-part references and the current drawing revisions. Request the complete connector dimensions needed to compare the proposed cable with both interfaces. Treat the DC5521 designation as the product identity and use the drawing review to establish the additional details needed by your assembly.
On the sketch, distinguish equipment that is part of the quotation request from equipment shown only as a reference. Identify the cable itself clearly. If the layout includes other cables, label them separately so the requested item cannot be confused with a neighboring connection. A clear scope description is especially useful when the purchasing team did not prepare the layout drawing.
Male and female ends need separate reference points
Label the male end and female end in the connection drawing. For each one, give the mating component reference, the intended location and any dimension your team still needs for review. If you use end A and end B labels, carry them through the inquiry message, route sketch and connection map. Keep the same viewing direction conventions in all connector views.
Ask your team to define the intended contact relationship between the two ends. Include polarity and identification requirements in the connection map, together with the electrical requirements that apply to the complete cable. Request the proposed construction against those inputs. Keep any unresolved requirement visible for discussion before approving the configuration.
If the male and female ends connect to parts managed by different teams, identify the document owner for each reference. Ask both teams to review the same cable proposal. Where a mating part has changed, name the revised document in the inquiry and make clear that an earlier reference should no longer govern the proposed item.
Select from the published cable series options

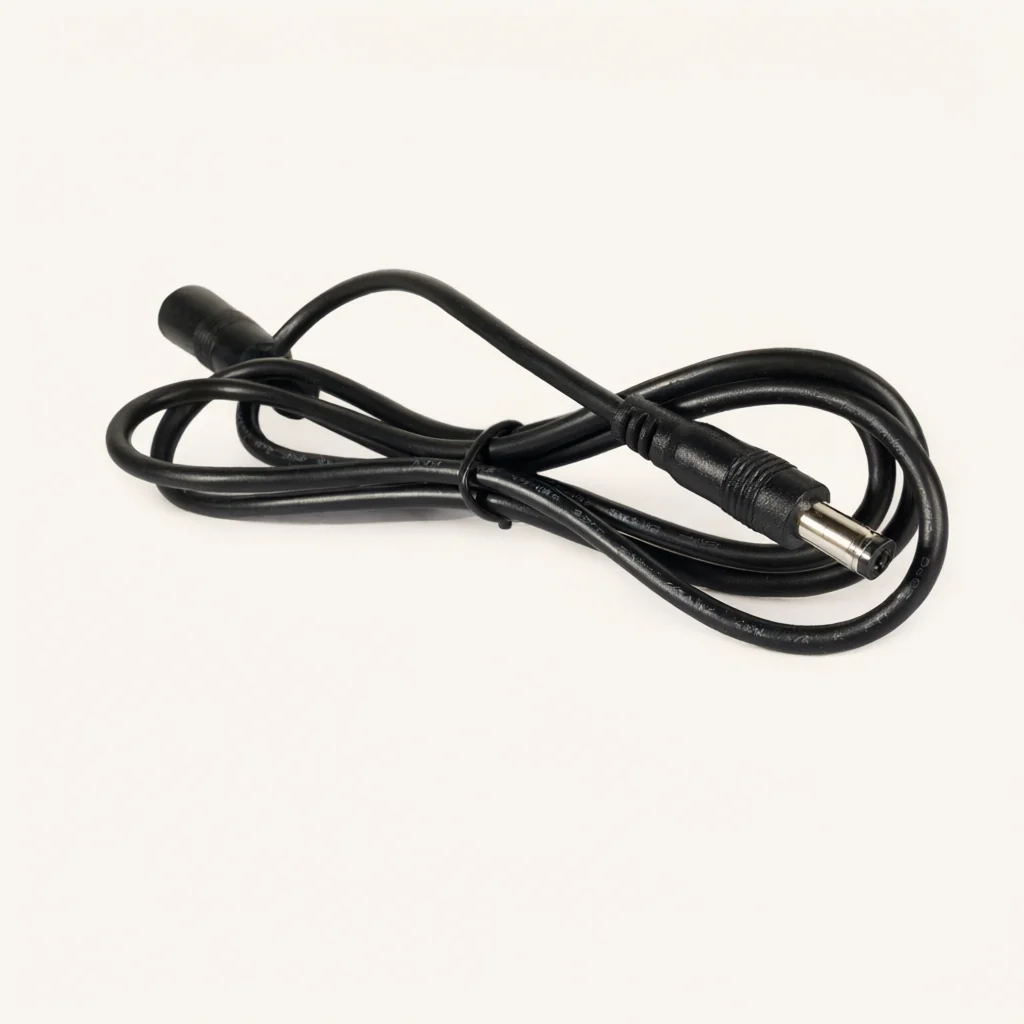

The DC cable series includes DC5521 male-to-female cables. Published length choices are 100, 200, 300 and 500 cm, with customized lengths also listed. The series lists black or customized color, and PVC as an outer jacket material. Its customization scope covers cable length, color, jacket material and packaging.
Select the length and appearance you want quoted. If a jacket requirement needs discussion, describe your project requirement and request a proposed material choice. Keep a preferred configuration separate from any alternative you want considered. Finalize the combination for your item in the quotation rather than treating every series option as a selected feature.
Bulk pack, retail box and OEM box packaging are listed in the customization description. State which arrangement you want discussed and what item identification should accompany the proposed cable. If packaging is not yet decided, include it as an open choice and ask for alternatives to be described separately from the cable specification.
| Item | Series information |
|---|---|
| Configuration | DC5521 male-to-female |
| Lengths | 100 / 200 / 300 / 500 cm or customized |
| Color | Black or customized |
| Jacket listed | PVC |
| Packaging options | Bulk pack / retail box / OEM box |
Measure the new route instead of copying the old length
Draw the intended cable path in the revised layout. Mark any points where your team needs dimensions or access reviewed. Ask the person responsible for the assembly to establish the required length from that path, including any allowance the project wants considered. Put the allowance in the drawing rather than leaving it as an unexplained addition to a length number.
Define the measurement endpoint at each connector. State the tolerance your team requires and request agreement on that convention. If you have measured an existing cable, identify the endpoints used for that measurement so the proposed length can be compared with the same reference. Keep the final dimension on the current cable drawing.
The series includes custom lengths, so submit the length your revised route requires. For several installation layouts, name each layout and provide the corresponding requested dimension. Ask for the alternatives as separate items if you need more than one configuration quoted. This lets your team select the intended route without silently changing the connector arrangement or other agreed choices.
A practical inquiry for a layout change
An inquiry can begin with a short explanation of the revision: which connection position is moving, which interfaces remain fixed and which cable requirements are still open. Follow it with the requested product identity, the two mating references and the route drawing link. Keep that explanation brief enough for the buyer to compare with the item description in the quotation.
For example, a buyer might write, 'Please quote DC5521 male-to-female for the revised layout linked below. Use the male and female interface references shown on the drawing; the cable length is defined between the marked endpoints.' This is a request format. Add your actual dimensions, document revisions, quantity and required choices rather than treating the example as a finished specification.
Use the customization page to describe your length, color, jacket and packaging requirements. Share drawing links in the inquiry message or send the specification by email. If the project needs a sample stage, explain which layout or interface questions that stage is intended to resolve and ask for the proposal accordingly.
Review the complete proposed arrangement
Before accepting a proposed sample or drawing, ask your team to review both interfaces and the route together. Record the drawing revisions used in that review. A change at one connection position should be reflected in the cable description if your team determines that it changes the requirement. Keep a record of accepted details and requested revisions.
Define any checks and supporting documents needed by your purchasing process. State the criteria your team wants evaluated and discuss the proposed arrangement for them. Keep the cable's dimensions, connection map, jacket selection and appearance as separate review entries. That way, a decision about one item can be recorded without obscuring another requirement that remains open.
If the layout changes again after review, identify the new revision explicitly. Ask for the proposed cable description to be updated where needed, and compare the new quotation with that description. Retain the superseded reference for your own history while directing the purchasing decision to the version you intend to approve.
Plan identification for different installation versions
For a project with several layouts, give each selected cable a distinct purchasing reference even when the connector identities are shared. Include the requested length and the relevant route revision in your item list. Ask for the proposed packaging identification to distinguish those references in the way your receiving team requires.
Discuss whether bulk, retail or OEM box packaging is the arrangement you want considered. Provide any identification text or grouping requirements with the request and ask for the selected method to be named in the quotation. When comparing alternatives, keep the cable configuration the same unless you deliberately request a change to it.
Check the handover between layout and purchasing
Before the inquiry is released, ask the layout owner and buyer to review the same cable item together. Confirm which route revision is current and whether the requested quantity applies to one layout or several. Put drawing links beside the relevant items instead of sending an unstructured folder of references. If a proposed change is still awaiting a decision, identify who will provide that decision. Keep the quotation request focused on the configuration you want evaluated now, while listing any future layout as a separate discussion.
Submit the selected male-to-female specification
If you are still deciding the end arrangement, use the DC product catalog to review the product identities. Once this configuration is selected, contact Huajunxin with the latest route, both mating references and your requested quantity. Include the chosen series options and the questions your team still needs resolved.
Before ordering, compare the proposed cable description with the latest equipment layout. Confirm the length convention, connection requirements, jacket, color and packaging together with quantity and timing. Keep the agreed item description as the reference for future orders. When a later layout revision changes the requirement, identify the affected cable item and submit the revised drawing with the next request.
Frequently asked questions
What end configuration is covered here?
The product identity is DC5521 male-to-female. Show the mating reference for each end in the inquiry, with a complete connection map and the drawing revisions your team wants used for review.
Can I request a custom route length?
The series lists custom lengths alongside 100, 200, 300 and 500 cm. Provide your required dimension, the measurement endpoints and tolerance, then ask for the complete proposed configuration to be confirmed.
Which jacket and color choices are listed?
PVC is listed as an outer jacket material, with black or customized color. Jacket material customization is also listed. Describe the requirements your team wants considered and select the proposed combination before ordering.
How should several layout versions be quoted?
Give each requested configuration an item reference and link it to its route drawing and required length. Ask for separate line items and specify the identification or packaging arrangement your receiving process needs.
