Put cable exit direction on the drawing
For a project considering an angled male connector, describe where the cable should go after the connection is made. Show the mating interface and the surrounding layout in the same view. Mark the intended cable direction relative to the equipment, using a reference that your assembly team can recognize. Keep that direction visible alongside the connector identity in the inquiry.
Ask your engineering team which connector dimensions are needed to review the proposed arrangement. Include the mating-part drawing and any nearby features that should be considered. The right-angle product identity establishes the configuration you are discussing; use a complete proposed drawing to review how that configuration fits your intended layout.
If your project has several possible orientations, name each option and identify the view used to describe it. Avoid using only words such as left or right without a stated viewing direction. A marked sketch can show the proposed connector location and the intended cable route, with open dimensions called out for discussion.

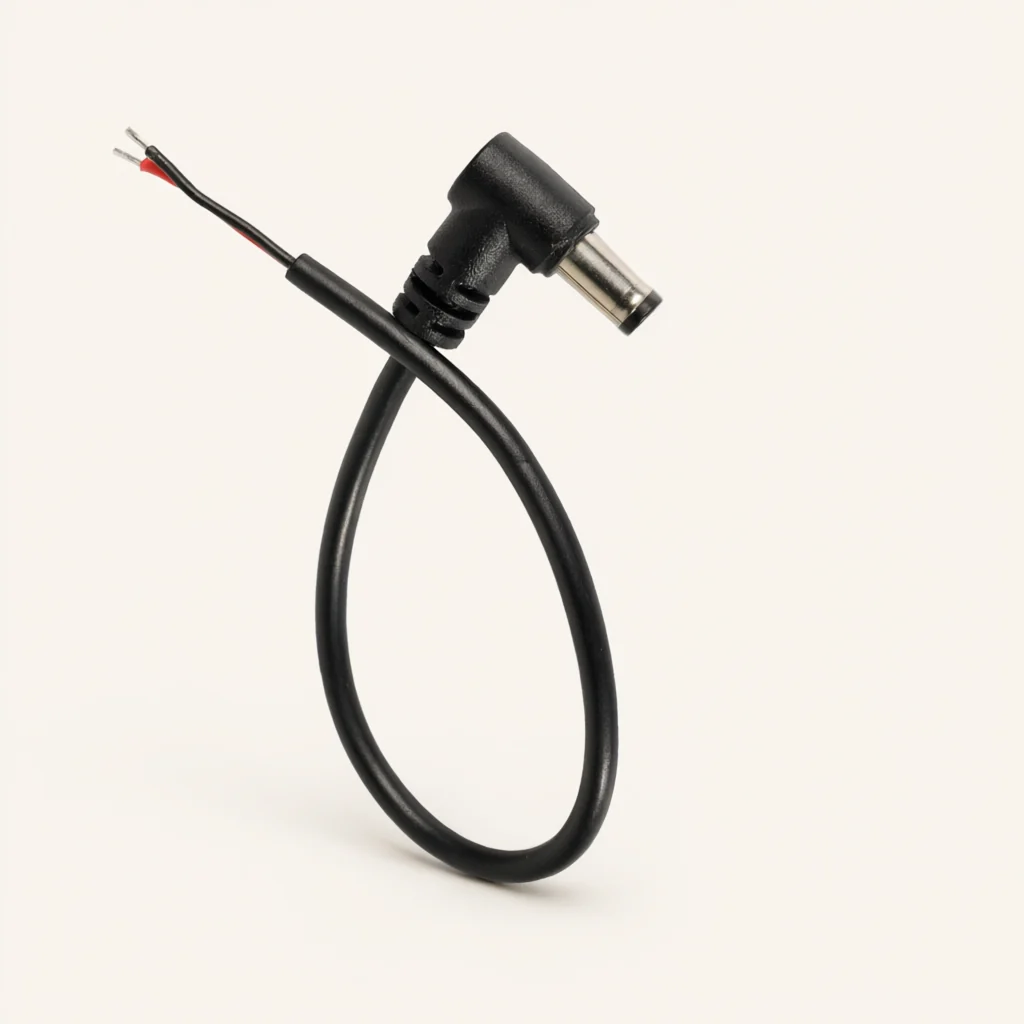

Select the angled male connector identity
The listed series includes DC5525, DC5521, DC4017 and DC35135 angled male plugs. State the selected identity in your request and provide the matching interface reference your project wants reviewed. Ask for the additional connector dimensions needed by your assembly team rather than deriving the full geometry from the product designation.
Keep any alternative connector identities separate from the primary request. If the interface itself is still being selected, explain which decision remains open and what information your team needs. Once the choice is made, update the item description and drawing reference before asking for an order-ready proposal.
For multiple equipment versions, show the selected connector and intended exit direction for each version. Use separate item references where the requirements differ. Ask for the quotation to describe the proposed configurations individually so a direction or connector choice from one layout is not applied to another without your team's decision.
Published length, color and sheath options
The angled male pigtail series lists cable lengths of 30, 50 and 100 cm, with customized lengths also available. Black or customized color is listed, and the outer sheath options are PVC or rubber. Use these choices to define the proposed cable item, then request confirmation of the selected combination against your drawing.
For length, identify the route your project wants the cable to follow and the endpoints used for measurement. For color, provide the selected appearance or the reference you want discussed. For sheath material, describe the project requirements your team needs considered alongside the listed choices. Keep a selected option distinct from an alternative still under review.
If your inquiry covers more than one layout, include the selected length and appearance for each item. Identify any common requirement explicitly and place differences beside the corresponding item reference. This gives the proposed configurations a clear basis for technical review and purchasing comparison.
| Item | Series information |
|---|---|
| Angled male choices | DC5525 / DC5521 / DC4017 / DC35135 |
| Lengths | 30 / 50 / 100 cm or customized |
| Color | Black or customized |
| Outer sheath | PVC or rubber |
Review the space around the connection
Mark the surrounding equipment features that your team wants considered in the connector review. Ask whether the proposed connector dimensions and cable exit direction suit the intended assembly position. Include any access required during installation as a drawing requirement. Where a nearby component is provisional, identify its status and the decision needed before the layout is released.
Use the same coordinate or viewing reference across the layout and connector drawings. If the assembly is shown from more than one side, label the views so the requested direction remains clear. Ask the person reviewing the proposal to compare it with those labeled views rather than interpreting an isolated connector photograph.
A useful buyer's instruction might say, 'Review the selected angled male connector against the linked mating part and the marked cable direction in our assembly view.' This is a request example. Add your actual connector choice, document revisions and dimensions, then identify any orientation question that remains open for your team.
Follow the cable route to the wire-end connection
Show the intended cable path from the angled connector to the wire-end position. Identify any assembly stage that uses a different position from the finished layout. Ask your team to establish the required length and any allowance it wants considered from that route. Keep the allowance dimensioned rather than leaving it as a general note to add extra cable.
Define the length endpoints on the cable drawing and state the tolerance required. For a comparison with an existing cable, identify the measurement convention used on the reference item. Ask for the proposed length to use the same convention or explain the requested difference. Link the final dimension to the selected orientation and item reference.
Custom lengths are listed for the series. Submit the dimension your route requires and ask for it to be confirmed for the selected angled connector and sheath option. If you want alternatives compared, identify which route each length belongs to and state whether the connector orientation is intended to remain the same.
Define wiring and end preparation separately from orientation
Prepare a contact-to-wire map for the proposed cable, including polarity requirements and the viewing direction used for the connector diagram. Keep the electrical relationship separate from the layout view that shows cable direction. Ask your engineering team to approve both references and include any wire identification needed by the assembly process.
Describe the intended connection method at the wire end and ask which preparation can be supplied for the proposed construction. Provide the relevant dimensions and mating references. If your process has particular acceptance or documentation requirements, list them in the inquiry so the proposed item can be discussed against the complete specification.
Include the operating requirements of the intended assembly as inputs to the proposal. Ask for the cable construction to be reviewed against those requirements together with the selected connector and termination. Keep the final description tied to the actual configuration your team intends to purchase.
Plan a sample review that includes orientation
If a sample is requested, identify the drawing views and mating references your team will use for review. Include the proposed cable exit direction, the surrounding layout and the wire-end route in the acceptance questions. Record the document revisions used and keep any unresolved dimension associated with the part of the layout it affects.
Define any checks and supporting records your project requires before purchase approval. Keep dimensional fit, connection mapping, length and appearance as separate entries in the review record. If the direction is accepted but another feature changes, state that distinction clearly in the requested revision and ask for an updated proposal.
When an equipment layout is revised, identify whether the change affects the connector position, exit direction or cable route. Retain the current item reference with an explicit revision note. Ask your team to review the proposed cable against the revised layout before treating the earlier approval as applicable to the new arrangement.
Keep orientation references usable by the next reviewer
Before handing the inquiry to purchasing, check that every view showing cable direction has a label and a clear relationship to the assembly. Ask the buyer to use those labels in questions about the proposal. If a photograph is included, identify whether it illustrates the desired direction or only the general connector form. Keep that distinction next to the image reference. When your team selects one orientation from several discussed options, mark it as the selected view and remove obsolete alternatives from the active purchasing brief.
Request the selected angled pigtail configuration
Use the DC product catalog to review product identities while the interface choice is being established. The customization page can help organize length and appearance questions. Once the selected arrangement is clear, contact Huajunxin with drawing links, the mating reference, intended exit direction and requested quantity.
Specifications can also be shared by email. Include your required schedule as a question for confirmation and identify whether the request concerns a sample proposal or an order configuration. Ask for the selected connector, length, sheath and color to be named together with the commercial terms.
Before approving the order, compare the quoted item with the current layout and connection map. Keep the agreed drawing and viewing references available for receiving review and later inquiries. If a future version changes the orientation or route, submit that change explicitly rather than relying on the same product name to describe a different arrangement.
Frequently asked questions
Which angled connector choices are listed?
The series lists DC5525, DC5521, DC4017 and DC35135 angled male plugs. Identify the choice your project requires and provide the mating-part reference and connector dimensions needed for review.
How should I specify cable exit direction?
Show the intended direction relative to a labeled assembly view and include the mating interface. State the viewing direction and mark any dimensions your team still needs to review in the proposed drawing.
What lengths and sheath materials are listed?
The series lists 30, 50 and 100 cm and custom lengths, with PVC or rubber outer sheath options. Black or customized color is also listed. Ask for your selected combination to be confirmed for the proposed item.
What should a sample review include?
Identify the interface, exit direction, route, wire-end requirements and connection map your team intends to evaluate. Provide the current document revisions and discuss any required checks or supporting records before approving the configuration.
