Start with the appearance requirement and the connection identity
If your project calls for a transparent cable appearance, identify that requirement clearly in the inquiry. State the selected DC5525 or DC5521 connector identity and whether the requested configuration uses a male or female connector. Give the item its own purchasing reference so the appearance discussion remains connected to a defined cable requirement.
Explain which part of your intended assembly your team wants reviewed for appearance. Share a reference image or drawing link and describe what the reference is intended to show. If it illustrates a preferred presentation rather than an approved specification, label it accordingly. Keep the requested connector and wiring requirements in the technical drawing beside the appearance reference.
Ask your team to decide how it will review the proposed appearance. Identify the reference and the conditions it wants used for that review, then include those requirements in the inquiry. Keep the appearance decision distinct from the interface and electrical requirements so all parts of the specification can be addressed before purchasing approval.
Transparent series choices to define in your quotation

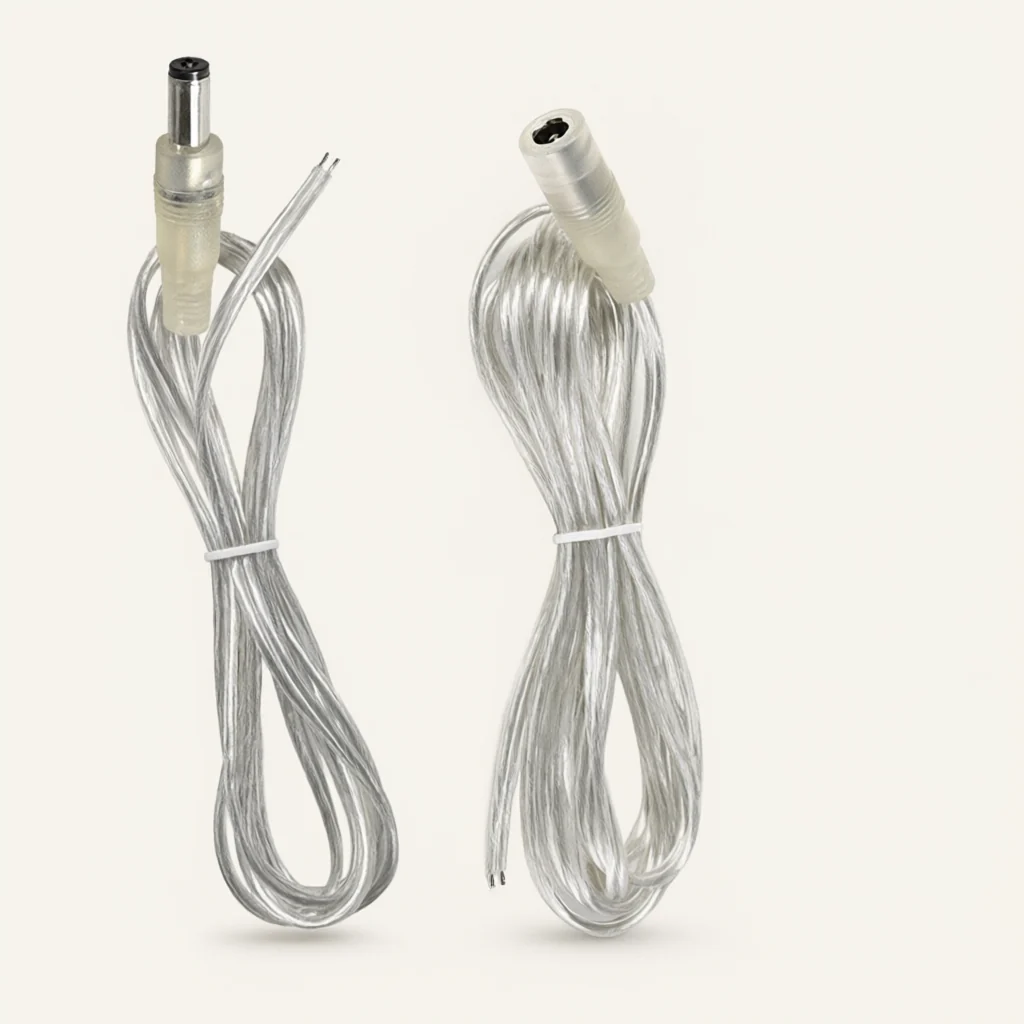

The series identifies DC5525 and DC5521 male and female connector choices and lists the cable color as transparent. Cable lengths of 20, 50, 100 and 200 cm are listed, with customized lengths also available. PVC and rubber are listed outer sheath material options. Select the combination you want considered and ask for it to be described in the proposal.
For the connector, provide the mating-part reference and request the full dimensions your team needs for review. For length, mark the measurement endpoints and required tolerance. For the sheath, state the requirements your team wants considered alongside the listed material choices. Keep each selected option associated with the same item reference.
If several configurations are being explored, list them as alternatives rather than placing multiple choices into one unfinished item description. State which connector identity, gender and length belongs to each alternative. Name the preferred option if your team has one, and identify the decision needed before selecting the configuration for an order.
| Item | Series information |
|---|---|
| Connector choices | DC5525 / DC5521 male or female |
| Color | Transparent |
| Lengths | 20 / 50 / 100 / 200 cm or customized |
| Outer sheath | PVC or rubber |
Use an appearance reference that says what matters
When sharing an appearance reference, add a short explanation of the feature your team wants discussed. Is the image intended to show the overall cable presentation, the way it is arranged in the assembly or a particular visual detail? Label that feature directly or refer to it in a keyed note. Avoid leaving the reviewer to decide which part of the image defines your request.
Keep an appearance reference separate from a dimensional reference if they serve different purposes. Your project may use one drawing to define the connector and another image to explain the intended presentation. Identify which document governs each requirement. If a proposed sample becomes your team's selected reference, record its identity and the configuration it represents in the approval record.
For a project with several appearance alternatives, give each one a name and show the decision your team needs to make. Ask for the proposal to identify the selected sheath material and cable configuration alongside the appearance being discussed. Retain the final choice in the purchasing specification so it is available to the person placing the order.
Define the interface and the opposite-end requirements
Provide the mating-part reference for the selected connector and identify the current drawing revision. Ask for the proposed geometry needed to compare the interface with your assembly. Keep the DC5525 or DC5521 identity as the requested designation, with any additional dimensions established through the drawing review.
Show the complete intended cable arrangement, including what your project requires at the opposite end. Describe the connection method and any preparation you want considered. Where another component is involved, include its relevant reference. Ask for the proposed item to be described against those requirements, and keep unresolved details listed for discussion.
Prepare a connection map with the intended contact relationship, polarity and viewing direction of connector diagrams. Include the electrical requirements of the complete assembly and any documents your purchasing process needs. Keep those inputs separate from the visual appearance request, while asking for one proposed cable description that addresses the complete item.
Establish the length from the intended presentation and route
Draw the route your project wants the cable to follow. Identify the connection positions and any assembly stage that your team needs considered. Ask the layout owner to establish the required length from that route and show any allowance explicitly. If the cable is shown in an appearance image, link that image to the dimensional layout rather than using the image alone as a length reference.
Mark the measurement endpoints and state the required tolerance. Where an existing sample is being used as a comparison, record how its length was measured. Use the same convention for the proposed item or explain the requested difference. Keep the final dimension on the current drawing and beside the item reference used in the quotation.
Custom lengths are listed for the transparent DC series. Submit the dimension your assembly requires and ask for the selected combination to be confirmed. For multiple layout versions, identify each requested length separately and state which connector and appearance requirements are intended to remain common.
Prepare a balanced technical and appearance brief
A useful inquiry can begin with the selected transparent DC cable configuration, followed by the technical drawing and the appearance reference. State what each document governs. Add the selected length, sheath choice and requested quantity, then list any open question that must be resolved before your team approves the item.
For example, a buyer might write, 'Please review the transparent cable configuration against our linked interface drawing and appearance reference. Use the dimensioned route for the length requirement, and identify any detail that needs clarification.' This is a request format. Replace it with your actual document references and selected options so the proposal can address a defined item.
Use the customization page to organize the length and configuration discussion, or share the drawing and image links through contact. Specifications can also be emailed. Include your requested schedule and explain whether the current request concerns an initial proposal, sample review or order configuration.
Review appearance and connection requirements separately
If a sample is requested, prepare separate review entries for appearance, connector geometry, route length and the intended connection requirements. Identify the references used for each entry. Ask your team to record the selected configuration and document revisions with the review result so the sample decision remains tied to the item being considered.
Define any checks and supporting records your project requires before approval. If your team accepts appearance while a dimensional question remains open, keep those outcomes distinct and ask for the revised proposal to address the unresolved detail. A final purchasing decision should refer to the complete agreed configuration, including the visual requirement your project has selected.
For incoming review, keep the approved item description and any selected appearance reference available to the receiving team. Ask that team to establish which identification and review criteria it needs. Record requested changes against the relevant requirement instead of using a general instruction to make the cable look like an earlier image.
Make a visual decision traceable to the cable item
If your team reviews several appearance references, record which one was selected and which cable proposal it belongs to. Keep a reference image linked to its item description rather than storing it under a general product name. Where the chosen image shows other components, mark the cable feature that governs the request. Share that selected reference with the buyer and the person responsible for receiving review so both use the same appearance requirement.
Keep the chosen reference current
When your assembly presentation or layout changes, identify the affected cable requirement and share the revised reference. State whether the connector choice, length or sheath selection also changes. Keep the current appearance reference clearly distinguished from options considered earlier in the project.
If your team requests a repeat item, provide the agreed drawing and selected reference rather than an unlabelled photograph. Ask for the proposed description to identify the same configuration or to state any requested revision. The DC product catalog can help revisit the product identity if the connection arrangement changes during the project.
Before placing the order, compare the quotation with the current technical and appearance brief. Confirm the selected connector, length, sheath and transparent appearance together with quantity and commercial terms. Keep that agreed set of references for later inquiries, and describe future changes explicitly so the purchasing discussion remains focused on the item your team intends to receive.
Frequently asked questions
Which connector choices are listed for the transparent series?
The series lists DC5525 and DC5521 male and female connector choices. Identify the configuration your project requires and provide the mating-part reference for the proposed drawing review.
What appearance information should I send?
The listed cable color is transparent. Share a clearly labeled reference and explain the feature your team wants reviewed. Identify how your team intends to evaluate the proposed appearance alongside the technical specification.
Which length and sheath options are listed?
The series lists 20, 50, 100 and 200 cm and customized lengths, with PVC or rubber outer sheath options. Select your requested combination and define the length endpoints and tolerance in the inquiry.
How should I approve a visual reference?
Identify the reference and the cable configuration it represents in your review record. Keep appearance approval separate from dimensional and connection decisions, then bring the agreed requirements together in the final purchasing specification.
